HL7 ADT Messages: A Comprehensive Guide

Welcome to Synfini Solutions' blog, where we delve into the intricacies of HL7 messaging standards. Today, we focus on HL7 ADT (Admit, Discharge, Transfer) messages, a cornerstone in the exchange of patient information in healthcare settings.

What is an HL7 ADT Message?

HL7 ADT messages are a type of message used to communicate patient demographics and administrative data across various healthcare systems. These messages facilitate the seamless transfer of patient information between different departments and systems within a healthcare facility, ensuring that patient data is consistent and up-to-date.

Key Components of HL7 ADT Messages

Patient Identification: Essential for accurate patient data, this includes the patient’s name, ID number, address, and contact details.
Administrative Information: Tracks the patient’s journey through the healthcare facility, including admission, transfer, and discharge details.
Event Types: HL7 ADT messages cover numerous event types, each with a specific purpose:
- A01: Patient admission.
- A02: Patient transfer.
- A03: Patient discharge.
- A04: Patient registration.
- A08: Patient information update.

Structure of ADT Messages

HL7 ADT messages consist of segments, each serving a unique function:

Mandatory Segments:

MSH (Message Header): Contains metadata about the message, including the sending and receiving applications, message type, and timestamp.
EVN (Event Type): Specifies the event being reported (e.g., admission, discharge).
PID (Patient Identification): Holds patient demographic information such as name, ID number, address, and contact details.

Optional Segments:

PD1 (Patient Additional Demographic): Contains additional patient demographic information.
NK1 (Next of Kin/Associated Parties): Provides information about the patient's next of kin.
PV1 (Patient Visit): Details about the patient’s visit or stay, such as attending physician, visit number, and visit type.
AL1 (Allergy Information): Lists any known allergies the patient has.
DG1 (Diagnosis Information): Contains information on the patient’s diagnoses.
GT1 (Guarantor Information): Provides details about the person responsible for paying the patient’s bills.
IN1 (Insurance Information): Contains insurance policy details relevant to the patient’s care.

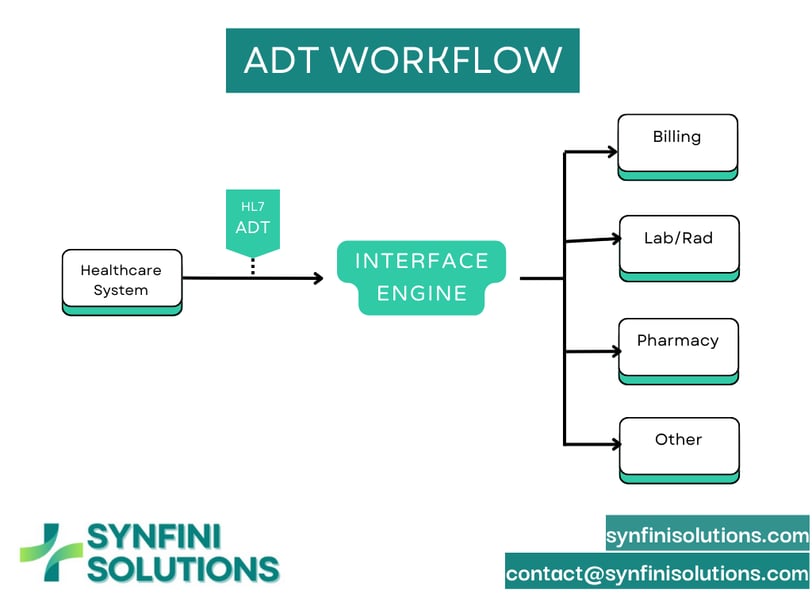

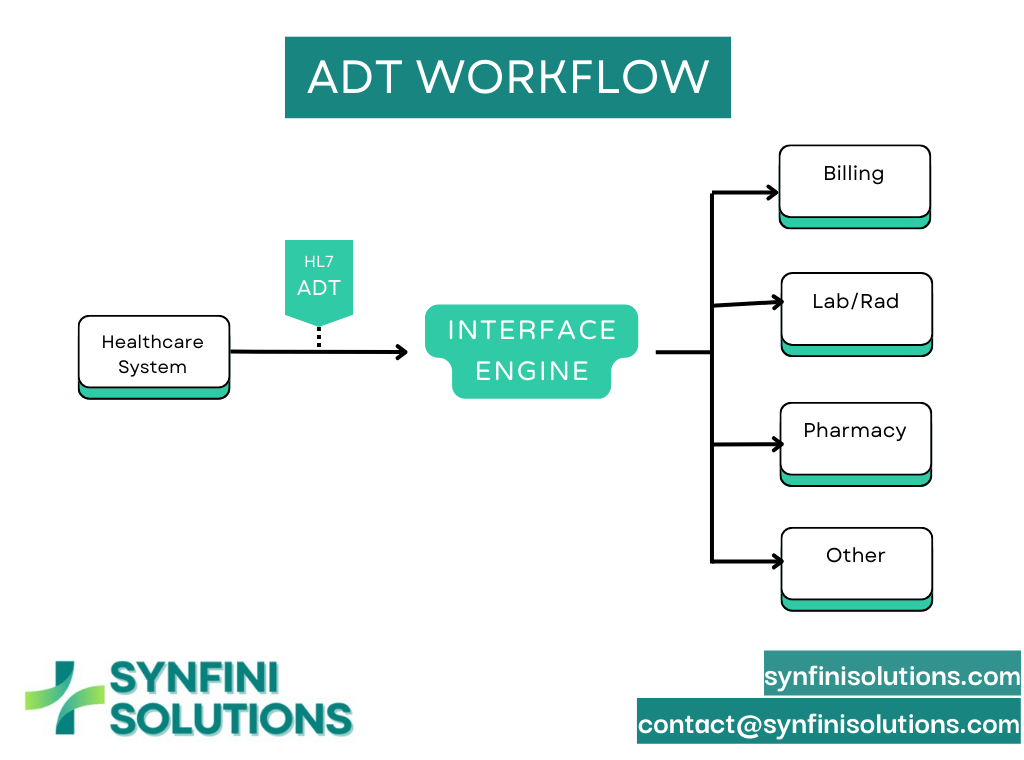

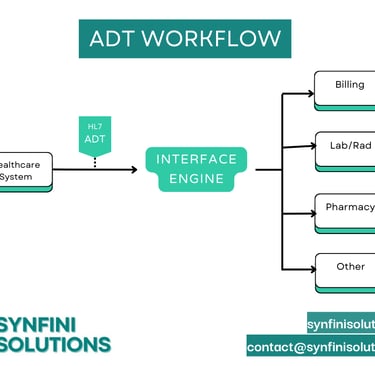

Workflow of ADT Messages

When a patient is admitted, an ADT message is generated and sent to relevant systems, updating the patient’s status. This ensures that all systems, including billing, EMR, and clinical systems, have the latest patient information. As the patient moves through different stages of care, subsequent ADT messages are generated and transmitted to maintain data consistency.

Challenges and Solutions

Ensuring data consistency and integrity across different systems is a significant challenge with HL7 ADT messages. Discrepancies in patient data can lead to severe issues in patient care and administrative processes. Integration engines like Mirth Connect can help by transforming, filtering, and routing HL7 messages to ensure seamless data exchange and consistency.

Sample HL7 ADT A01 Message

Here is a complete HL7 ADT A01 message, which is used to communicate patient admission details to other systems:

MSH|^~\&|HIS|RIH|EKG|EKG|20060529090131||ADT^A01|599102|P|2.3| EVN|A01|200605290901|200605290900|| PID|||123456||DOE^JOHN^A||19610615|M|||1234 MAIN ST^^PATOWN^CA^91455||(555)555-5555||(555)555-5556|||||||||999-99-9999| PD1|||1^Primary Care Physician^2^Alternate Care Physician||| NK1|1|DOE^JANE^A|SPO^Spouse||1234 MAIN ST^^PATOWN^CA^91455|(555)555-5555| PV1|1|I|2000^2012^01||||004777^LEBAHN^ROBERT^A|||SUR|||||||001776^BLAKE^AARON|S||200605290900|200605290900|||| AL1|1||^Penicillin||PRODUCES HIVES| DG1|1||786.50^CHEST PAIN^I9|||A| GT1|1||DOE^JOHN^A|19800101|1234 MAIN ST^^PATOWN^CA^91455|(555)555-5555||| IN1|1|BCBS|Blue Cross Blue Shield|1234 INSURANCE BLVD^^PATOWN^CA^91455|123456789|DOE^JOHN^A|SELF|19800101|M||||

Segment Breakdown

MSH (Message Header):
MSH|^~\&|HIS|RIH|EKG|EKG|20060529090131||ADT^A01|599102|P|2.3|
This segment contains metadata about the message, including the sending and receiving applications, message type, and timestamp.
EVN (Event Type):
EVN|A01|200605290901|200605290900||
Specifies the event being reported (e.g., admission, discharge).
PID (Patient Identification):
PID|||123456||DOE^JOHN^A||19610615|M|||1234 MAIN ST^^PATOWN^CA^91455||(555)555-5555||(555)555-5556|||||||||999-99-9999|
Holds patient demographic information such as name, ID number, address, and contact details.
PD1 (Patient Additional Demographic - Optional):
PD1|||1^Primary Care Physician^2^Alternate Care Physician|||
Contains additional patient demographic information.
NK1 (Next of Kin/Associated Parties - Optional):
NK1|1|DOE^JANE^A|SPO^Spouse||1234 MAIN ST^^PATOWN^CA^91455|(555)555-5555|
Provides information about the patient's next of kin.
PV1 (Patient Visit):
PV1|1|I|2000^2012^01||||004777^LEBAHN^ROBERT^A|||SUR|||||||001776^BLAKE^AARON|S||200605290900|200605290900||||
Details about the patient’s visit or stay, such as attending physician, visit number, and visit type.
AL1 (Allergy Information - Optional):
AL1|1||^Penicillin||PRODUCES HIVES|
Lists any known allergies the patient has.
DG1 (Diagnosis Information - Optional):
DG1|1||786.50^CHEST PAIN^I9|||A|
Contains information on the patient’s diagnoses.
GT1 (Guarantor Information - Optional):
GT1|1||DOE^JOHN^A|19800101|1234 MAIN ST^^PATOWN^CA^91455|(555)555-5555|||
Provides details about the person responsible for paying the patient’s bills.
IN1 (Insurance Information - Optional):
IN1|1|BCBS|Blue Cross Blue Shield|1234 INSURANCE BLVD^^PATOWN^CA^91455|123456789|DOE^JOHN^A|SELF|19800101|M||||
Contains insurance policy details relevant to the patient’s care.
