Welcome to Synfini Solutions' blog, where we explore the intricacies of HL7 messaging standards. Today, we delve into HL7 SIU (Scheduling Information Unsolicited) messages, essential for managing scheduling and appointments in healthcare settings.

What is an HL7 SIU Message?

HL7 SIU messages are used to communicate scheduling information across healthcare systems. These messages facilitate the management of appointments, resources, and personnel schedules, ensuring that all relevant parties are informed about the scheduling details.

Key Components of HL7 SIU Messages

Appointment Information: Details about the appointment, including date, time, and type of appointment.

Patient Information: Demographic and contact information of the patient for whom the appointment is scheduled.

Resource Information: Information about the resources required for the appointment, such as equipment, rooms, and healthcare providers.

Event Types: HL7 SIU messages cover various event types related to scheduling:

• S12: Notification of new appointment booking.

• S13: Notification of appointment rescheduling.

• S14: Notification of appointment modification.

• S15: Notification of appointment cancellation.

• S26: Notification that a patient did not show up for the appointment.

Structure of SIU Messages

HL7 SIU messages consist of several segments, each serving a unique function:

Mandatory Segments:

• MSH (Message Header): Contains metadata about the message, including sending and receiving applications, message type, and timestamp.

• SCH (Schedule Activity Information): Contains the main details about the scheduling event, including the appointment ID, start time, end time, and appointment reason.

Optional Segments:

• PID (Patient Identification): Holds patient demographic information such as name, ID number, address, and contact details.

• PV1 (Patient Visit): Details about the patient’s visit or stay, such as attending physician, visit number, and visit type.

• RGS (Resource Group): Identifies the resources (e.g., rooms, equipment) allocated for the appointment.

• AIG (Appointment Information – General Resource): Provides information about general resources involved in the appointment.

• AIL (Appointment Information – Location Resource): Details about the location resources (e.g., rooms) required for the appointment.

• AIP (Appointment Information – Personnel Resource): Information about the personnel resources (e.g., doctors, nurses) involved in the appointment.

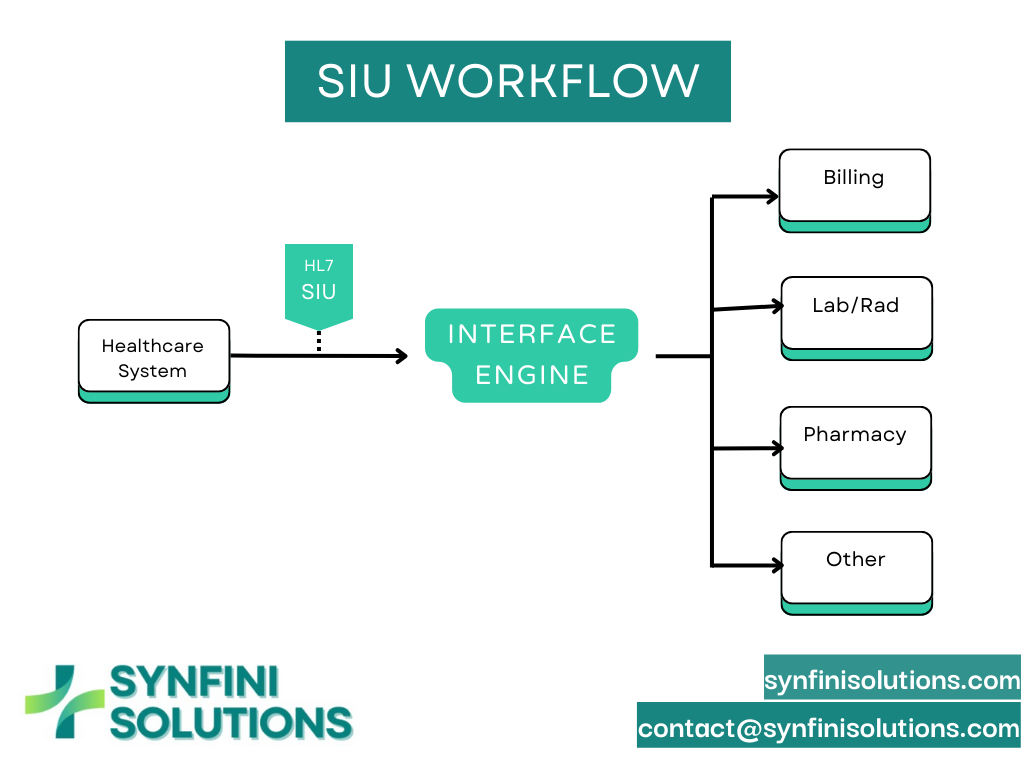

Workflow of SIU Messages

When an appointment is booked, modified, or canceled, an SIU message is generated and sent to relevant systems. This ensures that all systems, including EMR, scheduling, and resource management systems, have the latest scheduling information. This process helps maintain consistency and coordination across different departments and systems.

Challenges and Solutions

Managing scheduling data across various systems can be challenging. Discrepancies in scheduling information can lead to inefficiencies and miscommunications. Integration engines like Mirth Connect can help by transforming, filtering, and routing HL7 messages to ensure seamless data exchange and consistency.

Sample HL7 SIU S12 Message

Here is a complete HL7 SIU S12 message, which is used to communicate new appointment booking details to other systems:

MSH|^~\&|HIS|RIH|EKG|EKG|20060529090131||SIU^S12|599102|P|2.3| SCH|12345|67890|RIH|123|45|BOOKED|200605291200|200605291230|^^^ABC CLINIC|CARDIOLOGY CONSULT| PID|1||123456||DOE^JOHN^A||19610615|M|||1234 MAIN ST^^PATOWN^CA^91455||(555)555-5555||(555)555-5556|||||999-99-9999| RGS|1| AIG|1|Equipment|||01|1|MACHINE^MRI SCANNER| AIL|1|Location|Room|||01|1|^MRI ROOM^MAIN HOSPITAL| AIP|1|Personnel|||01|1|1234^DOE^JANE^M.D.|

Segment Breakdown

MSH (Message Header):

MSH|^~\&|HIS|RIH|EKG|EKG|20060529090131||SIU^S12|599102|P|2.3|

This segment contains metadata about the message, including the sending and receiving applications, message type, and timestamp.

SCH (Schedule Activity Information):

SCH|12345|67890|RIH|123|45|BOOKED|200605291200|200605291230|^^^ABC CLINIC|CARDIOLOGY CONSULT|

Specifies the scheduling event details, including appointment ID, start and end times, and appointment reason.

PID (Patient Identification):

PID|1||123456||DOE^JOHN^A||19610615|M|||1234 MAIN ST^^PATOWN^CA^91455||(555)555-5555||(555)555-5556|||||999-99-9999|

Holds patient demographic information such as name, ID number, address, and contact details.

RGS (Resource Group):

RGS|1|

Identifies the resources allocated for the appointment.

AIG (Appointment Information – General Resource):

AIG|1|Equipment|||01|1|MACHINE^MRI SCANNER|

Provides information about general resources involved in the appointment.

AIL (Appointment Information – Location Resource):

AIL|1|Location|Room|||01|1|^MRI ROOM^MAIN HOSPITAL|

Details about the location resources required for the appointment.

AIP (Appointment Information – Personnel Resource):

AIP|1|Personnel|||01|1|1234^DOE^JANE^M.D.|

Information about the personnel resources involved in the appointment.

Why Choose Synfini Solutions for Your HL7 Needs?

At Synfini Solutions, we specialize in providing robust, secure, and effective HL7 integration services. Our team of experts ensures that your data is accurately exchanged between systems, enhancing patient care and operational efficiency. Reach out to us to plan your seamless integration today.

For more information and to request channel exports, please contact us at contact@synfinisolutions.com.

Conclusion

Understanding and effectively utilizing HL7 SIU messages is crucial for efficient scheduling and resource management in healthcare. At Synfini Solutions, we are committed to helping you navigate the complexities of HL7 messaging standards.

Follow us on our blog for more detailed guides on various HL7 message types, including ADT, DFT, ORM, ORU, and more. Stay tuned!
